Install a new Kyocera printer

Step 1: Install Toner Cartridge & Waste Toner Box

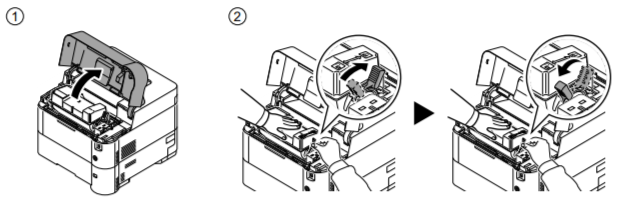

• Open the top cover and carefully remove all orange tape.

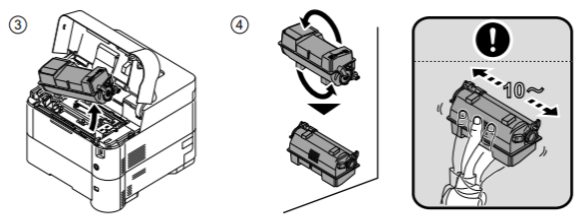

• Shake the toner for 5 to 10 seconds.
• Carefully remove the red protective sticker from the toner.

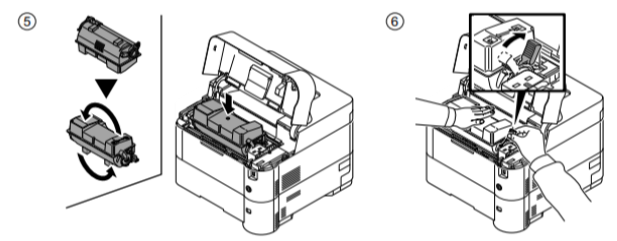

• Put the toner in place in the printer.

• Push down firmly on the top of the toner until it clicks into place.

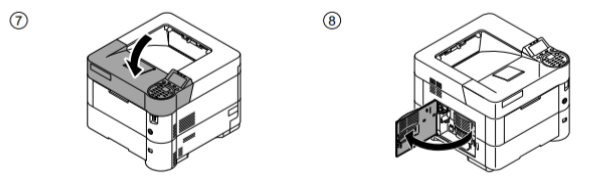

• Close the top cover.

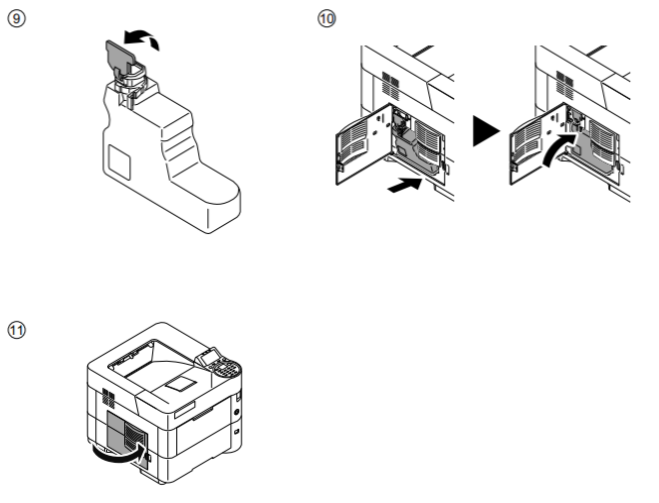

• Open the lid on the toner waste bottle.
• Open the left side cover.

• Push the toner waste bottle in, making sure to put the bottom in first and that the neck of the bottle is in the clips of the printer.
• Close the side cover.

Step 2: Add Paper to the Paper Cassette/s

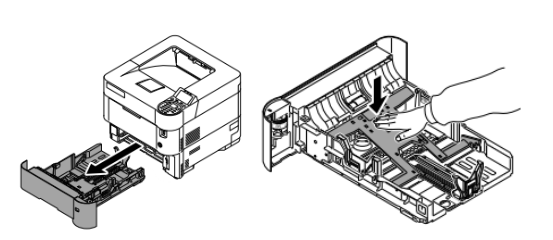

• Pull out the paper tray from the printer.
• If required, change the paper size on the display at the front of the paper tray.

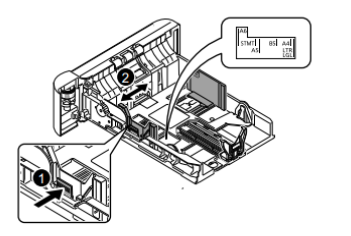

• Slide the side paper size adjustment clips to the required size.

• Slide the end stop clip to the paper size you want to use.
• Lift the clip and slide it to the required paper size.
• You only need to change the paper tray size if you are printing on paper other than A4.

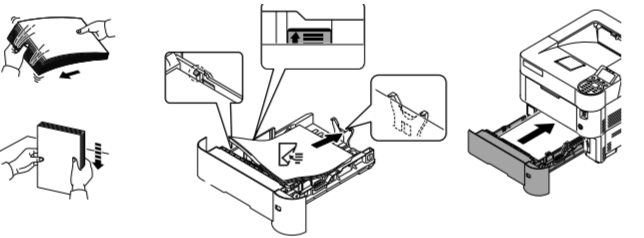

• Be sure not to over-fill the paper tray using the guides provided.
• When inserting paper make sure it is under the guides on either side of the paper bin inside the paper tray.
• Slide the paper tray back into the printer.

Step 3: Connect to the computer

• This applies to parallel-port and USB printing.

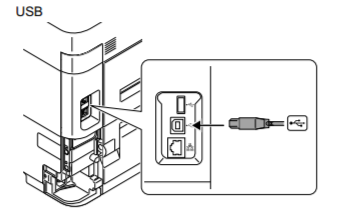

• Locate the USB or parallel ports on the back of the printer and connect the corresponding cable to your computer.
• Connect the power cable and turn the printer on at the power point.
• The computer should now display the Found New Hardware window.
