MedView Flow Docket Printing - Set up and Configure Docket Printer

This guide will provide you with step-by-step instructions to successfully install an Epson Thermal Printer and enable docket printing for MedView Flow.

Prerequisites

• Store using MedView Flow
• Epson Thermal Receipt printer from the TM8xxxx range, connected to a Dispense terminal with the latest Epson APD Driver installed.

Setup

1. From the start menu, search and open Printers and Scanners.
2. Select the Epson printer and click Printing Preferences.

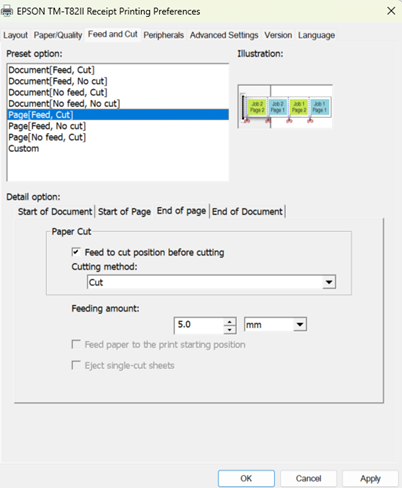

3. From the Feed and Cut tab, Ensure the below options and selected / enabled.



   Preset Option

   • Page [Feed,Cut]


   Detail Option

   • End of Page (all other tabs should be blank)
   • Feed to Cut position before cutting set to True
   • Cutting method: Cut
   • Feeding amount: 5.0mm




Configuration for MedView Flow / Browser

When docket printing prompts, it will default to the windows default browser.

1. Select the Epson printer.
2. Choose More Settings and unselect Headers and footers
3. Click Print.
